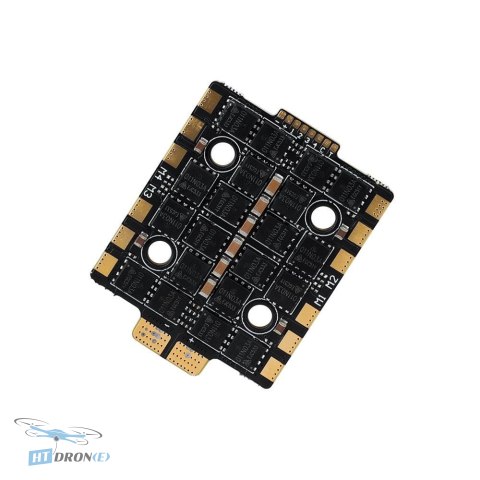

T-Motor F-60A-MINI-8S-4IN1 ESC: 60A 4-8S Mini 4-in-1 FPV Racing Drone ESC

Introduction

The T-Motor F-60A-MINI-8S-4IN1 ESC is a cutting-edge electronic speed controller designed for the intense demands of FPV racing and freestyle drone piloting. Engineered with advanced components and a focus on reliability, this 4-in-1 ESC unit provides efficient power management, exceptional durability, and consistent performance, making it an ideal choice for pilots seeking to push the limits of speed and agility.

Key advantages

• Enhanced Heat Dissipation: Features a large MOS design with over 60% increased heat dissipation area, significantly improving lifespan and reliability under heavy loads.
• High Current Capability: Delivers a continuous 60A current and can handle bursts up to 70A, with a low internal resistance of just 0.75 mΩ for maximum efficiency.

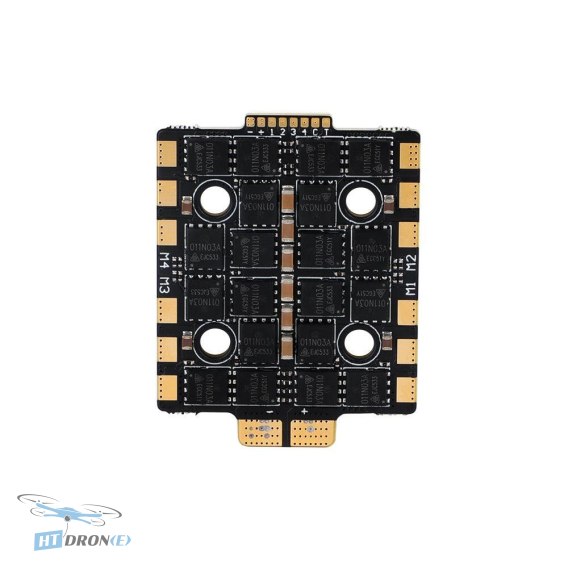

• Optimized Signal Transmission: Utilizes a symmetrical MOS layout to ensure consistent signal transfer and minimize electrical noise interference.
• Real-Time Monitoring: Supports telemetry and temperature monitoring, allowing for proactive fault detection and performance tracking during flight.
• Durable and Compact: Offers a compact form factor with robust mounting options, perfect for tight builds and high-vibration environments.
• Wide Voltage Range: Compatible with 4-8S LiPo batteries, providing flexibility for various power configurations.
• Advanced PWM Frequencies: Supports a wide range of PWM frequencies (16kHz-96kHz) with a default of 24kHz for smooth motor control.

Technical specifications

• Input Voltage: 4-8S LiPo
• Continuous Current: 60A
• Burst Current: 70A
• Internal Resistance: 0.75 mΩ
• PWM Frequency: 16kHz-96kHz (Default 24kHz)
• Current Scale: 200
• Mounting Holes: 20 × 20 mm / Φ4 mm
• Dimensions: 36 × 47 mm

Applications

This T-Motor ESC is specifically designed for high-performance FPV applications, including competitive FPV racing, aggressive freestyle drone flying, and demanding aerial cinematography where power and reliability are paramount.

Compatibility

The T-Motor F-60A-MINI-8S-4IN1 ESC is compatible with 4-8S LiPo batteries and features standard 20x20mm mounting holes. It comes with various signal wires and an XT60 power lead for easy integration into most FPV drone builds.

FAQ

What is the T-Motor F-60A-MINI-8S-4IN1 ESC best suited for?

The T-Motor F-60A-MINI-8S-4IN1 ESC is specifically designed for high-performance FPV applications, excelling in both competitive FPV racing and aggressive freestyle drone flying where robust power delivery and reliability are crucial.

What is the maximum voltage and current this ESC can handle?

This ESC supports 4-8S LiPo batteries and can handle a continuous current of 60A, with a burst current capability of up to 70A. Its low internal resistance ensures efficient power transfer.

Does the T-Motor F-60A-MINI-8S-4IN1 ESC support telemetry?

Yes, the T-Motor F-60A-MINI-8S-4IN1 ESC supports real-time telemetry and temperature monitoring. This feature allows pilots to proactively detect potential issues and monitor the ESC's performance during flight.

What are the mounting dimensions for this ESC?

The T-Motor F-60A-MINI-8S-4IN1 ESC features standard 20x20mm mounting holes with a Φ4mm diameter, making it compatible with most FPV drone frames designed for this size.

Where can I buy the T-Motor F-60A-MINI-8S-4IN1 ESC with fast delivery?

You can order the T-Motor F-60A-MINI-8S-4IN1 ESC directly from HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your FPV parts quickly.
