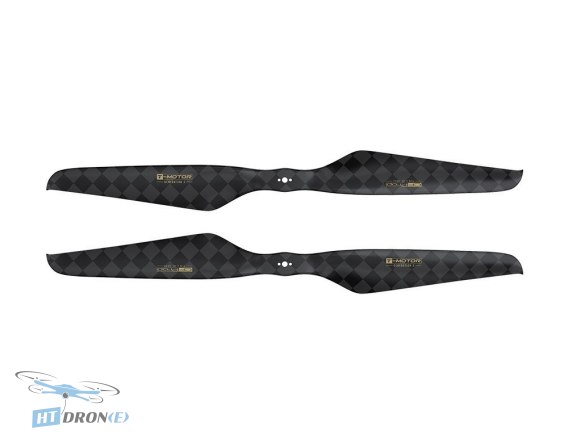

T-Motor NS22x6.6 Propellers - 22-Inch Carbon Fiber for FPV Drones

Introduction

The T-Motor NS22x6.6 propellers are engineered for serious FPV and UAV enthusiasts seeking peak performance. These 22-inch, 2-blade propellers are constructed from a robust carbon fiber and epoxy composite, providing the durability and rigidity needed for demanding aerial tasks. Whether you're into professional aerial photography, long-range exploration, or competitive FPV racing, these props deliver the thrust and stability you require.

Key Advantages

• High-Performance Design: Integrated 2-blade construction optimized for maximum thrust and efficiency.
• Durable Construction: Made from a high-quality Carbon Fiber + Epoxy (CF+Epoxy) blend for longevity.
• Optimized Size: 22-inch diameter and 6.6-inch pitch for powerful lift and stable flight.
• Wide Operating Range: Suitable for operation in extreme temperatures from -40℃ to 65℃.
• Impressive Thrust: Achieves 2.3 to 6 kg of thrust at 3220-5180 RPM, with a maximum of 11 kg at 6970 RPM.
• Lightweight: Each blade weighs only 33g, minimizing rotational inertia for better responsiveness.
• Included Accessories: Comes as a pair (2 pieces) with a convenient parts bag for easy storage.
• Reliable Brand: Manufactured by T-Motor, a trusted name in high-quality drone components.

Technical Specifications

• Model Number: 22*6.6
• Series: T-MOTOR Series
• Blade Construction: Integrated 2-blade design
• Weight (Single Blade): 33g
• Package Weight: 466.2g
• Dimensions (Diameter): 22 inches (559.1 mm)
• Dimensions (Pitch/Width): 6.6 inches (167.64 mm)
• Package Size: 646 x 95 x 58 mm
• Material: Carbon Fiber + Epoxy (CF+Epoxy)
• Recommended Thrust/RPM: 2.3 - 6 kg / 3220 - 5180 RPM
• Max Thrust/RPM: 11 kg / 6970 RPM
• Operating Temperature: -40℃ to 65℃
• Storage Temperature/Humidity: -10℃ to 50℃ / <85%
• Package Includes: 2 x Propellers, 1 x Parts Bag

Applications

These T-Motor NS22x6.6 propellers are perfect for large-scale FPV drones, custom UAV builds, heavy-lift platforms, aerial survey drones, and performance-oriented drone racing setups. They are designed to provide stable and powerful flight for a variety of professional and hobbyist applications.

Compatibility

Ensure your drone's motor hub and frame are compatible with 22-inch diameter propellers and the specified mounting requirements. These propellers are designed for high-power systems typically found in larger FPV and UAV configurations.

FAQ

What are the T-Motor NS22x6.6 propellers best suited for?

The T-Motor NS22x6.6 propellers are ideal for larger FPV drones and UAVs that require significant thrust and stability. They are excellent for applications such as FPV racing, aerial photography, and heavy-lift tasks where reliable performance is crucial.

What material are the T-Motor NS22x6.6 propellers made of?

These propellers are constructed from a high-strength Carbon Fiber + Epoxy (CF+Epoxy) composite. This material ensures durability, rigidity, and resistance to bending under high loads, contributing to their performance and longevity.

What is the weight of a single T-Motor NS22x6.6 propeller?

Each individual T-Motor NS22x6.6 propeller weighs approximately 33 grams. This relatively low weight for a 22-inch propeller helps reduce rotational inertia, allowing for quicker throttle response and improved flight maneuverability.

What is the recommended operating temperature range for these propellers?

The T-Motor NS22x6.6 propellers are designed to operate reliably in a wide temperature range, from -40℃ to 65℃. This makes them suitable for use in various climates and demanding environmental conditions.

Where can I buy T-Motor NS22x6.6 propellers with reliable delivery?

You can buy the T-Motor NS22x6.6 propellers directly from HTDRONE, your specialized FPV drone parts store. We offer fast shipping within Poland and reliable international delivery via DHL worldwide.
