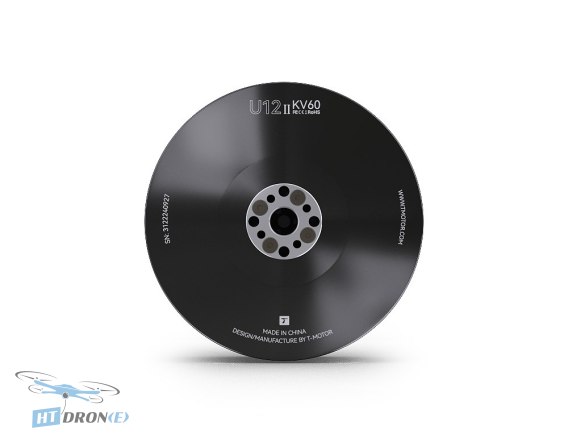

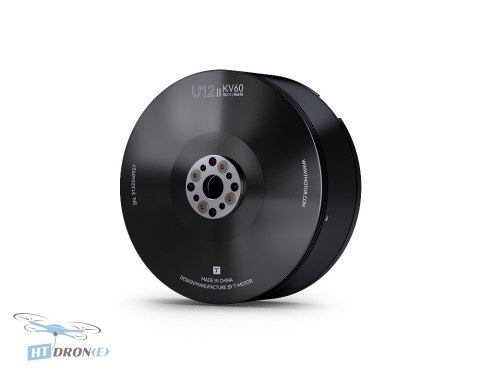

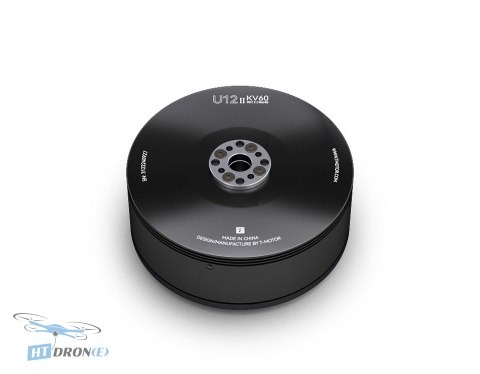

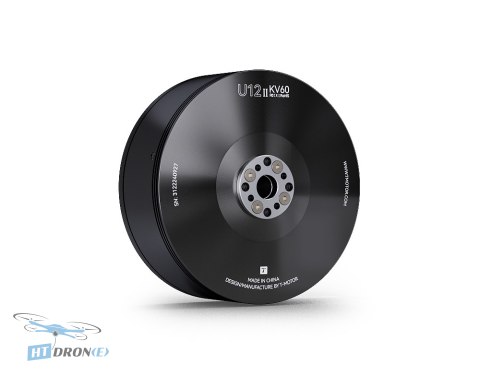

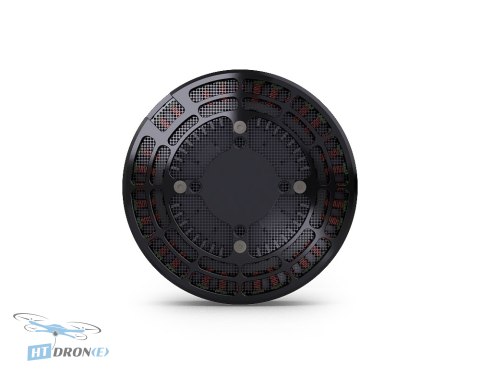

T-Motor U12II KV60 Brushless Motor for Heavy-Lift Drones | Max Thrust 20kg

Introduction

The T-Motor U12II KV60 is a cutting-edge, high-performance brushless motor specifically designed for heavy-lift multirotor unmanned aerial vehicles (UAVs). It addresses the need for robust and reliable propulsion systems in demanding industrial applications, offering exceptional thrust and durability for extended operational periods. This motor is engineered to handle significant payloads, making it a top choice for professional drone operators.

Key Advantages

• Exceptional Thrust: Delivers a maximum thrust of 20kg, perfect for heavy payloads.
• Enhanced Efficiency & Durability: Features a new iron core design for improved performance and longevity.
• High-Temperature Operation: Engineered to perform reliably in challenging, high-temperature environments.
• Dust Protection: Integrated network ensures reliable operation even in dusty conditions.
• Long Service Life: Boasts an estimated Mean Time Between Failures (MTBF) of approximately 1000 hours for industrial applications.
• Robust Construction: Built to withstand demanding operational conditions, ensuring consistent performance.
• High Power Output: Capable of delivering up to 4000W of peak power.
• Optimized for UAVs: Specifically tuned for multirotor UAVs requiring significant lift capabilities.

Technical Specifications

• Model: T-Motor U12II KV60
• Test Item (KV): 60
• Weight (with cable): 803g

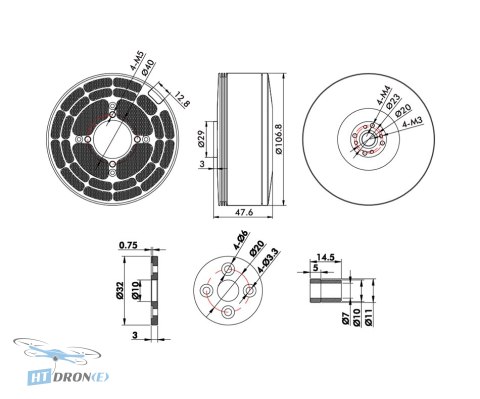

• Motor Dimensions: Φ106.8*47.6 mm
• Internal Resistance: 75 mΩ
• Wire: 90 mm Enameled Wire
• Configuration: 36N42P
• Shaft Diameter: 15 mm
• Rated Voltage (Lipo): 22-25S
• Idle Current (10V): 1.7A
• Peak Current (180s): 41A
• Max Power (180s): 4000W

Applications

The T-Motor U12II KV60 is ideally suited for professional UAV applications such as aerial surveillance, security operations, high-payload surveying, mapping, and other industrial tasks where reliable, high-thrust propulsion is critical. Its robust design makes it suitable for extended missions in various environmental conditions.

Compatibility

This motor is designed for use with 22-25S Lipo batteries and is compatible with heavy-lift multirotor platforms. The 15mm shaft diameter allows for secure mounting of large propellers.

FAQ

What is the maximum thrust of the T-Motor U12II KV60 motor?

The T-Motor U12II KV60 motor delivers a maximum thrust of 20kg, making it suitable for drones requiring significant lifting capability for heavy payloads.

What are the best applications for the T-Motor U12II KV60?

This motor is best suited for professional UAV applications such as aerial surveillance, security operations, heavy-payload surveying, and industrial tasks that demand reliable and powerful propulsion.

What is the rated voltage for the T-Motor U12II KV60?

The T-Motor U12II KV60 is designed to operate with a rated voltage of 22-25S Lipo batteries.

How durable is the T-Motor U12II KV60 motor?

The U12II KV60 features a new iron core for enhanced durability and efficiency, operates effectively in high temperatures, and includes dust protection. It has an estimated MTBF of around 1000 hours, indicating long-term reliability for industrial use.

Where can I buy the T-Motor U12II KV60 motor with fast delivery?

You can buy the T-Motor U12II KV60 motor at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your high-performance drone parts quickly.
