TBS Lucid Freestyle Flight Controller FC 20x20mm for FPV Racing Drones

Introduction

The TBS Lucid Freestyle Flight Controller is a compact, high-performance control board designed specifically for the demands of FPV freestyle and racing drones. Measuring 20x20mm, it integrates advanced gyroscopic technology and versatile connectivity options, making it a top choice for pilots looking to optimize their drone's flight characteristics and simplify setup.

Key advantages

• High-performance ICM-42688P gyroscope for precise flight control.
• Plug-and-play connectors for DJI O3 digital system and 4-in-1 ESCs, simplifying installation.
• Multiple UART interfaces (6) for extensive peripheral connectivity.
• Integrated OSD with AT7456E for real-time flight data.
• 8MB onboard flash memory for blackbox logging.
• Designed for easy soldering and logical mounting in popular FPV frames.
• Compatible with TBS Crossfire and Tracer, and works with any radio receiver.
• Supports 3S-6S input voltage for wide compatibility.

Technical specifications

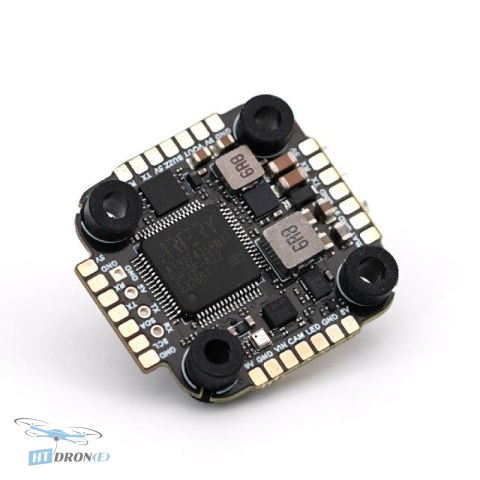

• MCU: AT32F435RMT7, 288 MHz
• Gyroscope: ICM-42688P
• Motors: 4 motors with telemetry and current sensor
• BEC: 9V 2.5A, 5V 2A
• OSD: AT7456E
• Blackbox: 8 MB flash memory
• UART Ports: 6 (UART1/ UART3/ UART4/ UART5/ UART7/ UART8)
• Input: 3S-6S
• Size: 31 x 29 mm
• Mounting: 20 x 20 mm
• Weight: 4.51 g

Applications

This flight controller is ideal for building or upgrading FPV freestyle drones, FPV racing drones, and custom UAV projects where precise control, advanced features, and ease of integration are paramount.

Compatibility

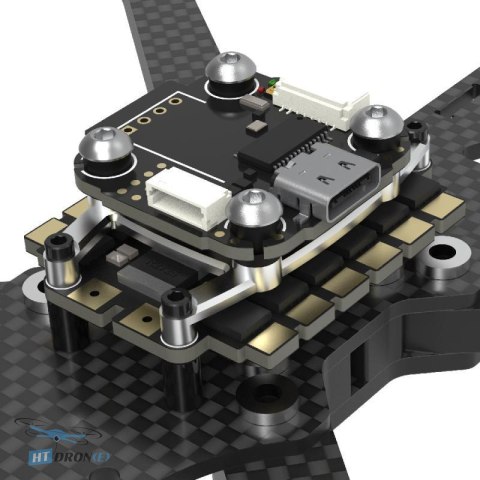

Features plug-and-play connectors for the DJI O3 digital system and 4-in-1 ESCs, adhering to Betaflight standards. It is designed for TBS Crossfire and TBS Tracer systems but is compatible with any radio receiver. The 20x20mm mounting pattern ensures compatibility with a wide range of popular FPV frames.

FAQ

What is the TBS Lucid Freestyle Flight Controller designed for?

The TBS Lucid Freestyle Flight Controller is specifically designed for FPV freestyle and racing drones, offering advanced features and reliable performance for these demanding applications.

What are the key connectivity features of the TBS Lucid FC?

It features plug-and-play connectors for the DJI O3 digital system and 4-in-1 ESCs, along with 6 UART ports for extensive peripheral connectivity. It's also compatible with TBS Crossfire and Tracer systems.

What is the mounting pattern and size of the TBS Lucid Freestyle FC?

The flight controller has a 20x20mm mounting pattern and measures 31 x 29 mm, making it suitable for a wide range of FPV drone frames.

What is the input voltage range for this TBS flight controller?

The TBS Lucid Freestyle Flight Controller supports an input voltage range of 3S to 6S, offering flexibility for various battery setups.

Where can I buy the TBS Lucid Freestyle Flight Controller with fast delivery?

You can buy the TBS Lucid Freestyle Flight Controller at HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast delivery within Poland and worldwide shipping via DHL.
