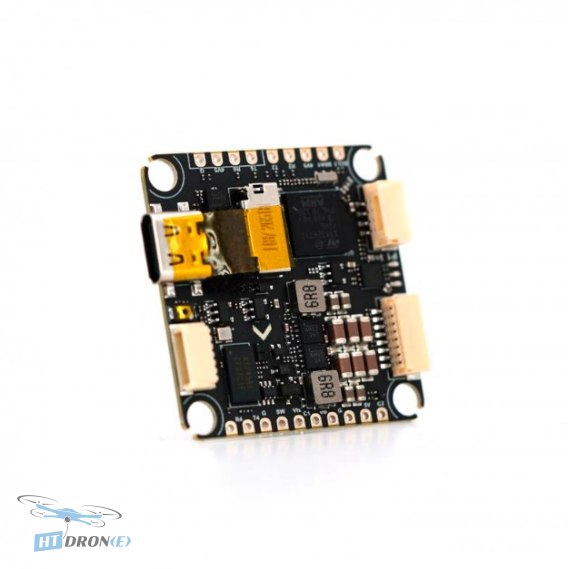

TBS Lucid H7 FC Flight Controller | STM32H743VIH6 480MHz | for FPV Freestyle & Racing
Elevate your FPV drone performance with the TBS Lucid H7 FC. Engineered for ultimate power and flexibility, it features a robust 480 MHz STM32H743VIH6 processor and dual ICM42688 gyros for ultra-stable flight. Perfect for freestyle tricks or fine-tuning race setups, it supports Betaflight, ArduPilot, and INAV. With dual camera inputs and DJI FPV OSD compatibility, this compact flight controller integrates seamlessly into any build. Buy the best for your FPV drone today at HTDRONE!
| Enter your email |
| Reviews | |
| Price of consignment | 35 |
| The Availability Of |
|
| Leave your phone |

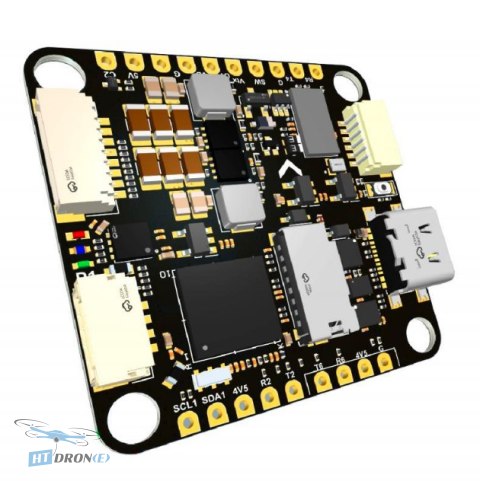

Introducing the TBS Lucid H7 FC Flight Controller
The TBS Lucid H7 FC is a powerhouse designed for FPV drone enthusiasts demanding peak performance and unmatched flexibility. Whether you're executing complex freestyle maneuvers or optimizing your racing drone's setup, this flight controller delivers. Built around a formidable 480 MHz STM32H743VIH6 processor and equipped with dual ICM42688 gyroscopes, it ensures ultra-stable flight control and precise tuning capabilities. Seamlessly compatible with popular firmware like Betaflight, ArduPilot, and INAV, the TBS Lucid H7 FC offers versatility for a wide range of builds and applications. Its integrated SPI OSD and barometer provide essential real-time flight data, while dual camera inputs and DJI FPV OSD compatibility offer advanced integration options. Designed for both seasoned professionals and ambitious beginners, this flight controller makes pushing the boundaries of drone capability easier than ever. Shop now at HTDRONE for the ultimate FPV experience.
Key Advantages
- High-Performance Processing: Features an STM32H743VIH6 MCU running at 480 MHz with 1MB RAM and 2MB Flash for demanding tasks.
- Ultra-Stable Flight: Equipped with dual ICM42688 gyroscopes for enhanced flight stability and tuning precision.
- Versatile Firmware Support: Fully compatible with Betaflight, ArduPilot, and INAV, offering broad application flexibility.
- Integrated OSD & Barometer: Includes an AT7456E SPI OSD and Infineon DPS310 barometer for in-flight data and altitude sensing.
- Dual Camera Input: Supports seamless switching between two camera inputs for advanced FPV setups.
- DJI FPV OSD Compatibility: Easily integrates with DJI FPV systems via a free UART port.
- Robust Connectivity: Offers 7 UART ports, I2C, CAN bus, and multiple analog inputs for extensive peripheral support.
- Durable Construction: Designed for reliability in demanding FPV environments.
Technical Specifications
- MCU: STM32H743VIH6 @ 480 MHz, 1MB RAM, 2MB Flash
- Gyroscopes: 2x ICM42688 (Dual Gyro)
- OSD Chip: AT7456E (SPI2)
- Barometer: Infineon DPS310 (I2C2)
- PWM Outputs: 13 channels (incl. dedicated LED board)
- Blackbox (BB): MicroSD card slot (SDIO)
- UARTs: 7 total (1, 2, 3, 4, 6, 7, 8) with signal inversion ready
- I2C Buses: 2 available
- CAN Bus: 1 available
- Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Airspeed, Vbat2, Cur2)
- LED Indicators: 3 LEDs (Blue/Green FC status, Red 3.3V power)
- SPI Breakout: SPI3 available
- USB Interface: Type-C connector (USB 2.0 standard)
- JST Connectors: 1x JST-SH1.0 8-pin, 1x JST-GH1.25 4-pin
- Dual Camera Input: Switchable inputs
- Power Control: Switchable 5V/Vbat filtered output
- DJI FPV OSD Support: Via any free UART
- Input Voltage: 6-36 V (2-8S LiPo)
- BEC Outputs: 5V 2A continuous (3A peak), 9V 2A continuous (3A peak)
- 3.3V LDO: Up to 200 mA
- VBAT2 ADC Support: Up to 36V (1K:10K voltage divider)
- Power Consumption: 200 mA @ 5V (Betaflight), 150 mA @ 5V (ArduPilot)
Applications
The TBS Lucid H7 FC is ideal for building high-performance FPV drones, including freestyle quadcopters, racing drones, and custom UAV projects. Its advanced features make it suitable for pilots seeking maximum control, stability, and integration capabilities for both competitive flying and aerial acrobatics.
Compatibility

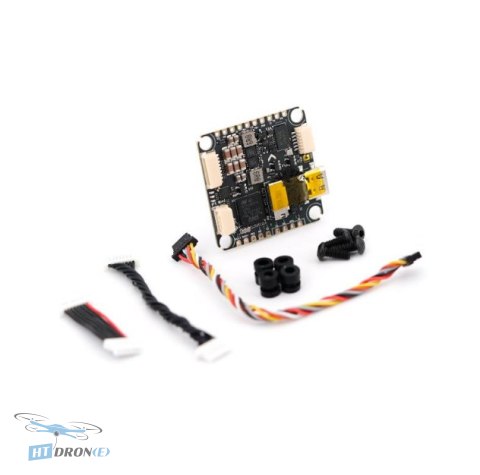

This flight controller is compatible with a wide range of FPV systems, including DJI FPV OSD. It supports multiple firmware options like Betaflight, ArduPilot, and INAV. The FC features standard M3 mounting holes and includes necessary cables for easy integration with ESCs and DJI digital systems. Power input ranges from 6-36V (2-8S LiPo).
FAQ
What is the TBS Lucid H7 FC designed for?
The TBS Lucid H7 FC is a high-performance flight controller designed for FPV drone enthusiasts. It's ideal for building advanced freestyle and racing drones, offering powerful processing and stable flight control.
What processor and gyros does the TBS Lucid H7 FC use?
It features a powerful STM32H743VIH6 MCU running at 480 MHz and is equipped with dual ICM42688 gyroscopes for ultra-stable flight and precise tuning.
Which FPV firmware does the TBS Lucid H7 FC support?
The TBS Lucid H7 FC offers broad compatibility and supports popular firmware like Betaflight, ArduPilot, and INAV, providing flexibility for various builds and pilot preferences.
Can the TBS Lucid H7 FC be used with DJI FPV systems?
Yes, the TBS Lucid H7 FC is compatible with DJI FPV OSD and can be easily integrated using any free UART port on the flight controller.
Where can I buy the TBS Lucid H7 FC with fast delivery?
You can order the TBS Lucid H7 FC flight controller from HTDRONE, our specialized FPV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL.
