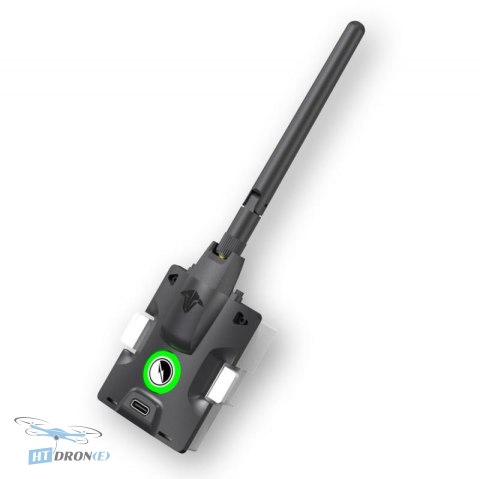

TBS Tracer Micro TX Module 2.4GHz Low Latency for FPV Drones

Introduction

The TBS Tracer Micro TX is a cutting-edge 2.4GHz radio transmitter module designed specifically for the demanding world of FPV drones. It provides an incredibly fast and robust wireless link, crucial for pilots who require instantaneous control and reliable telemetry. Whether you're competing in races or pushing the limits with freestyle maneuvers, the Tracer Micro TX ensures you stay connected with exceptional clarity and minimal delay.

Key Advantages

• Ultra-low latency of just 3ms for real-time control.
• Fastest available 250 Hz radio and telemetry link.
• Next-generation 2.4GHz technology powered by the robust Crossfire radio system.
• Extended range of 15+ miles (25 km) for confident flights.
• Compact nano-sized receiver with antenna diversity for improved signal reception.
• Versatile compatibility with JR and LITE module bays.
• Ideal for FPV drones, planes, helicopters, cars, and boats.
• Selectable output power from 25mW to 100mW for optimal performance.

Technical Specifications

• Latency and Refresh Rate: 3 ms, 250 Hz
• Output Power: 25 mW - 100 mW selectable
• Frequency Bands: 2.4 GHz ISM
• Input Voltage: +5 V to +13 V
• Connector: USB-C
• Power Consumption: 1.1 W (at 10 mW transmission), 2 W (at 100 mW transmission)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: LITE module slot (e.g., TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+

Applications

This module is perfect for a wide range of remote-controlled vehicles, including FPV racing drones, freestyle quadcopters, fixed-wing aircraft, RC cars, and boats. Its low latency and high refresh rate make it especially suitable for dynamic and fast-paced applications where precise control is paramount.

Compatibility

The TBS Tracer Micro TX is designed to fit into both standard 'JR' module bays and the 'LITE' module slot found on popular radios like the TBS Tango 2, Taranis X-Lite, and Taranis X9 Lite. It requires OpenTX firmware version 2.1 or newer. Power input ranges from +5V to +13V, and it features a USB-C connector for potential firmware updates or configuration.

FAQ

What is the latency of the TBS Tracer Micro TX module?

The TBS Tracer Micro TX module offers an ultra-low latency of approximately 3ms, paired with a 250 Hz refresh rate. This ensures a near-instantaneous connection between your radio transmitter and your FPV drone, which is critical for precise control during high-speed maneuvers.

What types of drones is the TBS Tracer Micro TX suitable for?

This module is ideal for a wide range of FPV applications, including racing drones, freestyle quadcopters, and even fixed-wing aircraft. Its compact size and robust performance also make it suitable for RC cars and boats.

What is the maximum range of the TBS Tracer Micro TX?

The TBS Tracer Micro TX provides an impressive range of over 15 miles (25 km). This extended range, combined with its reliable 2.4GHz signal, allows for confident flying even at significant distances.

Which radio transmitters are compatible with the TBS Tracer Micro TX?

The TBS Tracer Micro TX is designed to fit into standard 'JR' module bays and 'LITE' module slots. Compatible radios include those with LITE slots like the TBS Tango 2, Taranis X-Lite, and X9 Lite, provided they are running OpenTX firmware version 2.1 or newer.

Where can I buy the TBS Tracer Micro TX module with fast delivery?

You can buy the TBS Tracer Micro TX module at HTDRONE, your specialized FPV and UAV drone parts store based in Poland. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your order quickly.
