Introduction

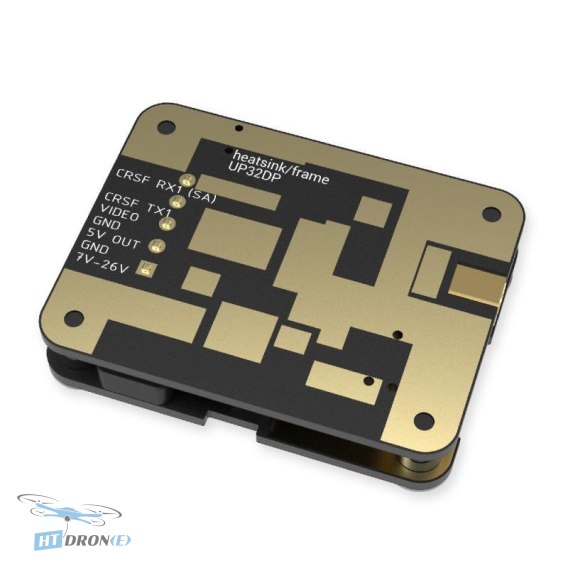

The TBS UNIFY PRO32 DP (MMCX) is a top-tier video transmitter (VTx) engineered for the FPV drone community. It stands out with its enhanced durability, reduced size, and lower power usage, all while delivering exceptional performance and reliability. The advanced heat dissipation design ensures optimal operation without the need for external cooling solutions like heatsinks or fans, making it a robust choice for any FPV setup.

Key advantages

• World's lightest 3-watt VTx, providing high output power in a compact form factor for long-distance FPV flights.
• Wide frequency range from 4990 MHz to 6030 MHz, offering flexibility for various FPV configurations.
• Easy configuration via TBS Smart Audio 2.1, compatible with Betaflight, TBS Crossfire/Tracer, or Ardupilot.
• One-button frequency and power configuration for quick and effortless adjustments.
• LUA support for CRSF users ensures advanced, streamlined control.

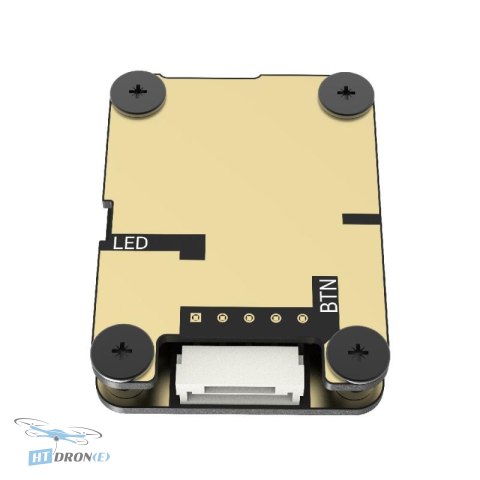

• Secure and reliable MMCX connector for consistent performance.
• Wide input voltage range supporting 2-6S LiPo batteries (6V to 25V).
• Dual noise filtering for superior signal clarity with a 63dB SNR.

Technical specifications

• Operating Voltage: 6V - 25V (2-6S)
• Video Input Impedance: 75 Ohm
• SNR: 63dBm
• Weight: 8.7g
• Dimensions: 37 x 28 x 10mm
• Antenna Connector: MMCX
• Video Format: NTSC/PAL
• Output Power Options:
  • 10mW (10dBm)
  • 25mW (14dBm)
  • 100mW (20dBm)
  • 200mW (23dBm)
  • 400mW (26dBm)
  • 500mW (27dBm)
  • 999mW (30dBm)

Applications

This VTX is perfect for a wide range of FPV applications, including racing drones, freestyle quads, long-range exploration, and professional UAV setups where reliable, high-quality video transmission is crucial. Its power and compact size make it versatile for various drone builds.

Compatibility

Compatible with TBS Crossfire and Tracer systems via CRSF protocol. Supports OSD configuration through Betaflight, TBS Crossfire/Tracer, or Ardupilot. Accepts input voltage from 6V to 25V (2-6S LiPo batteries).

FAQ

What makes the TBS Unify Pro32 DP (MMCX) a top choice for FPV pilots?

The TBS Unify Pro32 DP (MMCX) is recognized for being the world's lightest 3-watt VTx, offering exceptional power output in a compact design. It features advanced heat dissipation, wide frequency range, and easy configuration via TBS Smart Audio 2.1, making it highly reliable for demanding FPV flights.

What is the frequency range and power output of the TBS Unify Pro32 DP (MMCX)?

This VTX operates within the 4990 MHz to 6030 MHz frequency range. It offers multiple output power options, including 10mW, 25mW, 100mW, 200mW, 400mW, 500mW, and up to 999mW (30dBm), providing flexibility for different flight conditions and regulations.

How is the TBS Unify Pro32 DP (MMCX) configured and controlled?

Configuration is simplified through TBS Smart Audio 2.1, allowing adjustments via Betaflight, TBS Crossfire/Tracer, or Ardupilot. It also features one-button frequency and power settings, and LUA support for CRSF users, ensuring streamlined control.

What are the physical specifications and compatibility of this VTX?

The TBS Unify Pro32 DP (MMCX) is very lightweight at 8.7g and compact with dimensions of 37 x 28 x 10mm. It uses a secure MMCX antenna connector and supports a wide input voltage range of 6V to 25V (2-6S LiPo batteries).
