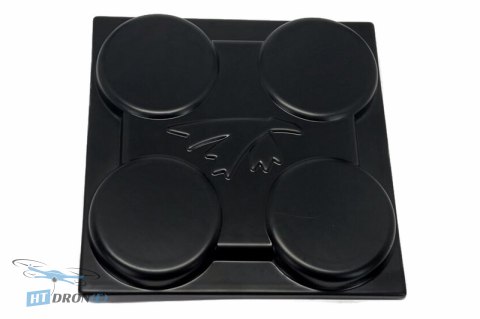

TrueRC Gatling 2.4 MK II RHCP FPV Goggle Antenna - 15.5dBic High Gain

Introduction

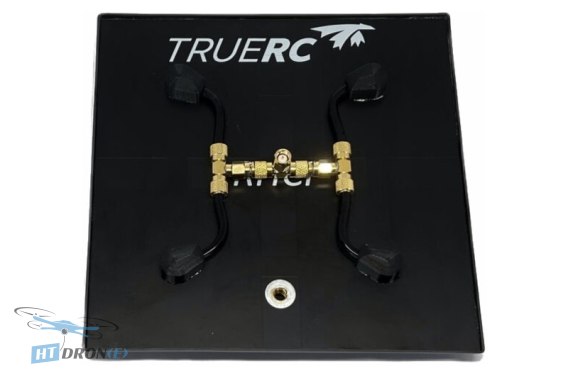

The TrueRC Gatling 2.4 MK II (RHCP) represents a significant advancement in FPV goggle antenna technology. Designed for pilots demanding superior signal clarity and range, this new version is notably smaller and more robust than its predecessors. It integrates four X-air antennas, meticulously tuned to work in unison, delivering a combined gain exceeding 15 dBic. This focused beam ensures a reliable video link, making it an excellent choice for portable ground stations and antenna trackers. Available in both RHCP and LHCP configurations, the Gatling 2.4 MK II is engineered for peak performance.

Key advantages

• Exceptional gain of 15.5dBic in a compact form factor.
• Superior axial ratio and overall signal performance.
• Robust construction for enhanced durability.
• Wide bandwidth covering 2.3-2.7GHz for versatile use.
• Designed for FPV goggle integration and ground station use.
• Easy mounting with a standard 1/4-20 thread.
• Low SWR (<1.5:1) ensures efficient power transfer.</li>
• RHCP polarization for optimal signal reception in compatible systems.

Technical specifications

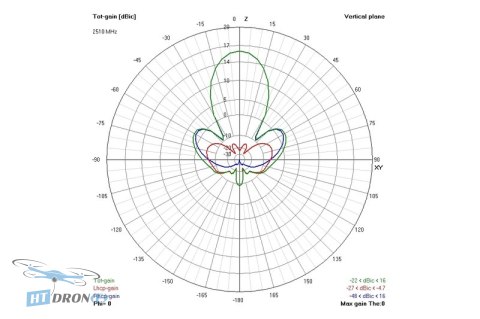

• Gain: 15.5dBic
• Polarization: RHCP
• Bandwidth: 2.3-2.7GHz
• SWR: <=1.5:1
• Weight: 350g
• Dimensions: 180x180x24mm
• Connector: SMA
• Mounting: 1/4-20 thread

Applications

The TrueRC Gatling 2.4 MK II RHCP is primarily designed for FPV (First Person View) drone applications. It excels in scenarios requiring extended range and a stable video feed, such as long-distance freestyle, racing, and aerial photography. It is also highly suitable for use with portable FPV ground stations and automated antenna trackers, enhancing their performance significantly.

Compatibility

This antenna features an SMA connector, ensuring broad compatibility with most FPV goggles and video receivers. The integrated 1/4-20 mounting thread allows for easy attachment to tripods, ground station mounts, or tracker systems.

FAQ

What is the main advantage of the TrueRC Gatling 2.4 MK II RHCP antenna?

The main advantage is its high gain of 15.5dBic combined with a significantly smaller and more durable design compared to previous versions. This provides a stronger, more stable video signal for FPV drones.

What FPV applications is the Gatling 2.4 MK II RHCP antenna best suited for?

It's ideal for long-range FPV flying, freestyle, racing, and any application where a clear and reliable video link is crucial. Its performance also benefits portable ground stations and antenna trackers.

What are the key technical specifications of the TrueRC Gatling 2.4 MK II RHCP?

This antenna offers 15.5dBic gain, RHCP polarization, a 2.3-2.7GHz bandwidth, and an SWR of <=1.5:1. It weighs 350g and measures 180x180x24mm with an SMA connector.</p>

Where can I buy the TrueRC Gatling 2.4 MK II RHCP antenna with fast delivery?

You can buy the TrueRC Gatling 2.4 MK II RHCP antenna at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

Is the TrueRC Gatling 2.4 MK II antenna compatible with standard FPV systems?

Yes, it features an SMA connector, which is standard on most FPV goggles and video receivers. The 1/4-20 mounting thread also ensures easy integration with various ground station setups.
