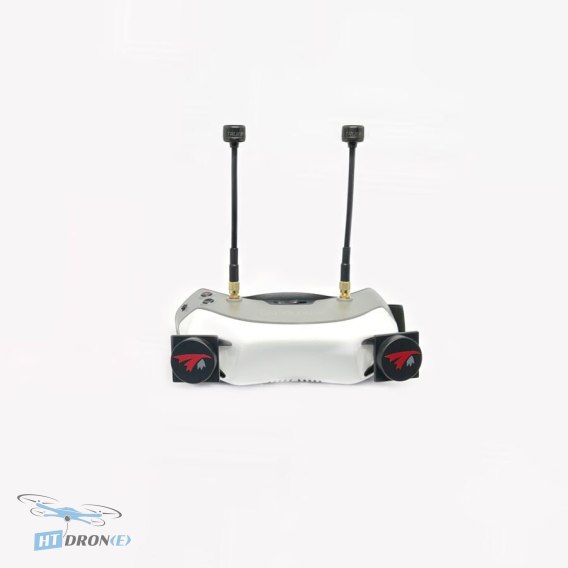

TrueRC X-AIR 5.8 MK II LHCP FPV Goggle Antenna Pair for Walksnail Avatar & Fat Shark

Introduction

The TrueRC X-AIR 5.8 MK II LHCP antenna pair is a premium upgrade for FPV pilots using Walksnail Avatar or Fat Shark Dominator HD goggles. Engineered for exceptional performance, this antenna set delivers unparalleled signal clarity and range, ensuring a stable connection during your most demanding flights. Its advanced design overcomes common signal issues, making it an essential component for serious FPV enthusiasts looking to maximize their system's potential.

Key advantages

• High-performance LHCP circular polarization for superior signal reception.
• Massive 10 dBic gain provides extended flight range and improved signal penetration.
• Ultra-wide 120-degree beamwidth ensures a broad reception area.
• Compact, low-profile design for easy mounting and portability.
• Custom knurled RP-SMA connectors for secure and reliable connections.
• Wide operating bandwidth (5.1 GHz-6.7 GHz) for robust performance.
• Includes two X-air MKII antennas and two 120mm CORE cables.
• Direct fit for Walksnail Avatar and Fat Shark Dominator HD goggles.

Technical specifications

• Bandwidth: 5.1 GHz-6.7 GHz
• Gain: 9.5-10.5 dBic
• Polarization: LHCP
• Beamwidth*: 120 degrees
• Beamwidth @-3dB**: 68 degrees
• Connector: RP-SMA Male
• Dimensions: 32 x 32 x 16 mm
• Included: Two X-air MKII antennas, Two 120mm CORE cables

*Single antenna coverage where reception is at least equivalent to an omnidirectional antenna.
**Single antenna coverage where at least 70% of maximum range is achieved.

Applications

This antenna set is ideal for FPV drone racing, freestyle flying, long-range exploration, and aerial cinematography where a stable and clear video signal is paramount. It's specifically designed to enhance the performance of FPV goggles for various aerial applications.

Compatibility

Directly compatible with Walksnail Avatar and Fat Shark Dominator HD goggles via RP-SMA male connectors. The included CORE cables ensure seamless integration.

FAQ

What is the main advantage of the TrueRC X-AIR 5.8 MK II antenna pair?

The main advantage is its high-performance design, featuring a 10 dBic gain and a 120-degree wide beamwidth, which significantly extends FPV flight range and improves signal penetration for a clearer video feed.

Which FPV goggles are compatible with the TrueRC X-AIR 5.8 MK II LHCP antennas?

These antennas are designed for direct mounting on Walksnail Avatar and Fat Shark Dominator HD FPV goggles, utilizing RP-SMA male connectors for a secure fit.

What is the signal polarization of the TrueRC X-AIR 5.8 MK II?

The TrueRC X-AIR 5.8 MK II antennas feature Left-Hand Circular Polarization (LHCP), which is crucial for optimal performance with compatible video transmitters and receivers.

Where can I buy the TrueRC X-AIR 5.8 MK II antenna pair with fast delivery?

You can order the TrueRC X-AIR 5.8 MK II antenna pair from HTDRONE. We offer fast and reliable shipping options for FPV enthusiasts.

What are the key technical specifications of the X-AIR 5.8 MK II?

Key specifications include a 5.1 GHz-6.7 GHz bandwidth, 9.5-10.5 dBic gain, LHCP polarization, a 120-degree beamwidth, and RP-SMA male connectors. Dimensions are 32 x 32 x 16 mm.
