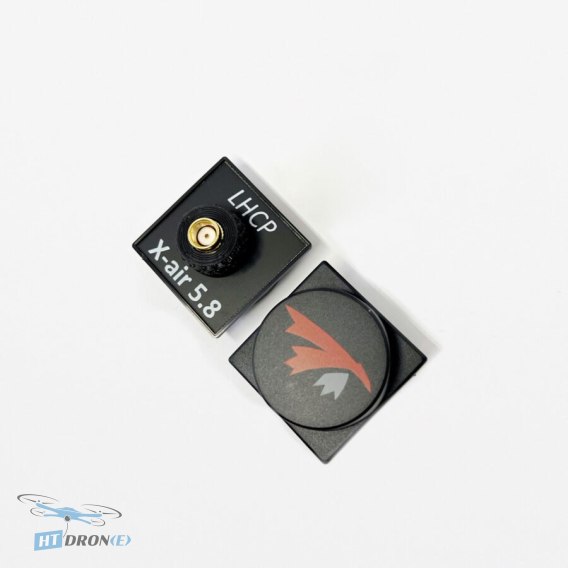

TrueRC X-AIR 5.8 MK II LHCP FPV Goggle Antenna Pair for Walksnail Avatar & Fat Shark

Introduction

Elevate your FPV flights with the TrueRC X-AIR 5.8 MK II antenna pair, specifically engineered for Walksnail Avatar and Fat Shark Dominator HD goggles. This high-performance antenna set provides exceptional signal clarity and range, ensuring a reliable connection even in challenging environments. Perfect for serious FPV pilots seeking the best performance from their goggles.

Key Advantages

• High-efficiency LHCP circular polarization for optimal signal reception.
• Direct RP-SMA connectors for seamless mounting on Walksnail Avatar or Fat Shark Dominator goggles.
• Compact and low-profile design for convenient storage and transport.
• Impressive 10 dBic gain delivers extended flight range and robust signal penetration.
• Wide bandwidth (5.1-6.7 GHz) ensures stable performance, even outside the standard 5.8 GHz band.
• Extremely wide 120-degree beamwidth for broad coverage.
• Custom knurled RP-SMA connectors for secure and easy handling.
• Enhanced signal quality for a more immersive FPV experience.

Technical Specifications

• Bandwidth: 5.1 GHz - 6.7 GHz
• Gain: 9.5 - 10.5 dBic
• Polarization: LHCP
• Beamwidth*: 120 degrees
• Beamwidth @-3dB**: 68 degrees
• Connector: RP-SMA Male
• Dimensions: 32 x 32 x 16 mm

*Coverage from a single antenna where reception is at least equivalent to an omnidirectional antenna.
**Coverage from a single antenna where at least 70% of the maximum range is achieved.

Applications

Ideal for FPV drone racing, freestyle flying, long-range exploration, and any application requiring superior video link performance for FPV goggles. Enhance your digital FPV system's capabilities.

Compatibility

Designed for direct connection to Walksnail Avatar and Fat Shark Dominator HD FPV goggles featuring RP-SMA connectors.

FAQ

What is the TrueRC X-AIR 5.8 MK II antenna pair?

The TrueRC X-AIR 5.8 MK II is a pair of high-performance LHCP FPV goggle antennas designed for Walksnail Avatar and Fat Shark Dominator HD goggles. They offer a 10 dBic gain for extended range and improved signal penetration.

Which FPV goggles are compatible with the TrueRC X-AIR 5.8 MK II antennas?

These antennas are designed for direct mounting on Walksnail Avatar and Fat Shark Dominator HD FPV goggles that use RP-SMA connectors. Check your goggle's connector type before purchase.

What are the main benefits of using the X-AIR 5.8 MK II antennas?

The key benefits include significantly increased flight range, better signal penetration through obstacles, a wider reception beamwidth (120 degrees), and a compact design for easy portability. They provide a more stable and immersive FPV experience.

Where can I buy TrueRC X-AIR 5.8 MK II antennas with fast delivery?

You can order the TrueRC X-AIR 5.8 MK II antenna pair from HTDRONE. We offer fast shipping within Poland and reliable delivery options for international customers.

What is the gain and polarization of the X-AIR 5.8 MK II antennas?

The antennas feature a high gain of 9.5-10.5 dBic and utilize Left Hand Circular Polarization (LHCP) for optimal performance with compatible FPV systems.
