TrueRC X-AIR 5.8G MK II RHCP Antenna Pair for HDzero VRX4 - High Gain FPV Goggle Upgrade

Introduction

The TrueRC X-AIR 5.8G MK II antenna pair is engineered for FPV enthusiasts using the HDzero VRX4 module. This advanced antenna system offers significant improvements in signal reception, providing a more stable and immersive flying experience. Designed for optimal performance, the X-AIR MK II enhances your FPV goggles' capability, ensuring you don't miss crucial video feed details during demanding flights.

Key advantages

• Exceptional Signal Strength: Features a high 10 dBic gain for extended range and superior signal penetration.
• Wide Beamwidth: Offers a very wide 120-degree beamwidth per antenna, combining for an impressive total coverage, crucial for maintaining a stable video link.
• Durable Low-Profile Design: With a slim 15mm thickness, these antennas are built to last and can remain attached without risk of damage.

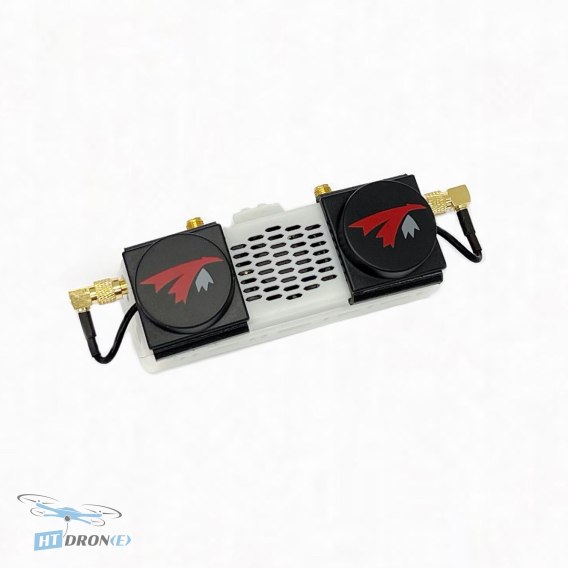

• Easy Installation: Integrated slide-on mounts ensure a native, hassle-free fit for the HDzero VRX4 module.
• Optimized RF Performance: Custom knurled SMA connectors provide a secure connection and efficient RF power transfer.
• Broadband Performance: Maintains excellent SWR and axial ratio across a wide frequency range, performing reliably even outside the 5.8GHz band.
• RHCP Polarization: Right-Hand Circular Polarization is ideal for rejecting multipath interference common in FPV environments.
• Compact and Portable: The sleek design makes them easy to store and transport, perfect for pilots on the go.

Technical specifications

• Bandwidth: 5.1GHz-6.7GHz
• Gain: 9.5-10.5 dBic
• Polarization: RHCP
• Beamwidth: 120 degrees (per antenna)
• Beamwidth @-3dB: 68 degrees (per antenna)
• Connector: SMA Male
• Dimensions: 32 x 32 x 15 mm
• Mounting: Includes slide-on mounts for HDzero module

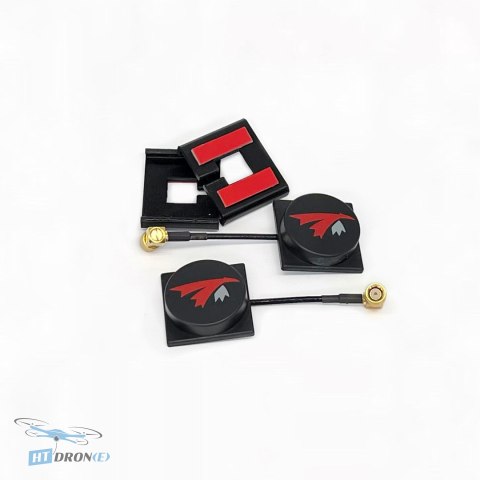

• Package Includes: 2x X-air MKII antennas, 2x slide-on mounts

Applications

These antennas are ideal for FPV drone racing, freestyle flying, cinematic FPV, and long-range FPV applications, especially when using the HDzero VRX4 video receiver module. They are perfect for pilots seeking to maximize their video link reliability and clarity.

Compatibility

Specifically designed to be compatible with the HDzero VRX4 video receiver module, utilizing integrated slide-on mounts for a seamless fit. Features custom knurled SMA male connectors.

FAQ

What is the main benefit of the TrueRC X-AIR 5.8G MK II antenna pair for HDzero VRX4?

The main benefit is significantly improved FPV video reception due to its high 10 dBic gain and wide 120-degree beamwidth, providing a clearer and more stable video link for your HDzero VRX4 module.

Are these antennas compatible with other FPV systems besides HDzero VRX4?

These antennas are specifically designed with integrated slide-on mounts for the HDzero VRX4 module. While they use standard SMA male connectors, their primary intended use and mounting system are for the HDzero VRX4.

What does RHCP polarization mean for my FPV flights?

RHCP (Right-Hand Circular Polarization) helps to reject interference from reflected signals (multipath interference), which is common in FPV environments. This results in a cleaner video feed, especially in complex flying areas.

Where can I buy the TrueRC X-AIR 5.8G MK II antenna pair with fast delivery?

You can buy the TrueRC X-AIR 5.8G MK II antenna pair directly from the HTDRONE store. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your FPV upgrade quickly.

What are the dimensions and mounting system of the X-AIR MK II antennas?

The antennas have a compact, low-profile design measuring 32 x 32 x 15 mm. They feature custom knurled SMA connectors and include specific slide-on mounts for easy, direct installation onto the HDzero VRX4 module without tools.
