TrueRC X-RAY 5.8GHz LHCP Goggle Antenna | Best FPV Performance

Introduction

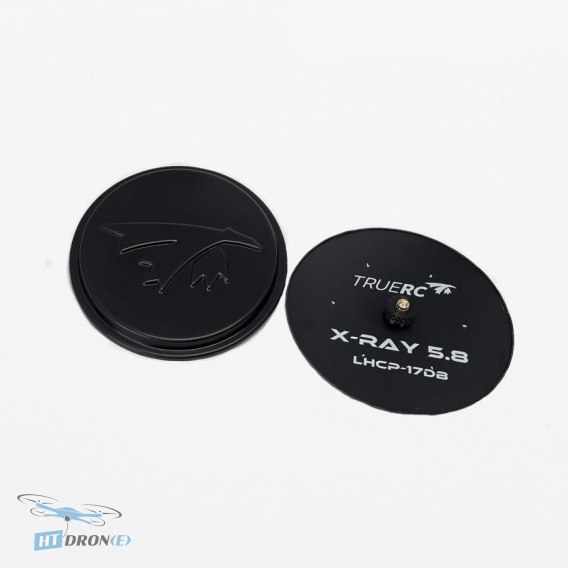

The TrueRC X-RAY 5.8 is a cutting-edge development in FPV goggle antenna technology, building upon the successful X-AIR platform. This single-feed panel antenna is engineered for optimal performance, boasting extremely low side lobes and maximizing the efficiency of the main lobe. It's the ideal choice for FPV enthusiasts who demand unparalleled signal clarity and range from their video transmission system. Get the best performance for your drone setup from HTDRONE.

Key Advantages

• Exceptional signal reception with very low side lobes.
• Superior front-to-back ratio for focused signal transmission.
• Excellent axial ratio ensures consistent signal quality.
• Wide operating bandwidth for reliable performance across frequencies.
• Maximizes main lobe efficiency for extended range.
• Durable construction for demanding FPV environments.
• LHCP polarization for compatibility with standard FPV systems.
• Compact and lightweight design for easy integration.

Technical Specifications

• Frequency: 5.4-6 GHz
• Gain: 17-18 dBic
• Polarization: LHCP (Left Hand Circularly Polarized)

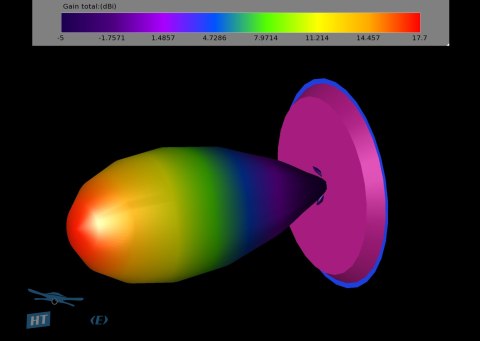

• Beamwidth*: 60 degrees
• Beamwidth @-3dB**: 24 degrees
• Connector: SMA
• Dimensions: 151mm dia. x 20mm

*Coverage where reception is at least equivalent to omni.
**Coverage where at least 70% of maximum range is achieved.

Applications

This high-performance antenna is primarily designed for FPV (First Person View) drone flying. It is ideal for FPV racing, freestyle, long-range flights, and any application where a clear and stable video feed is critical. Enhance your FPV experience with reliable signal transmission.

Compatibility

The TrueRC X-RAY antenna features an SMA connector, ensuring broad compatibility with most FPV goggles and video receivers on the market. Its LHCP polarization is standard for many FPV setups. Power requirements are minimal as it is a passive antenna.

FAQ

What is the TrueRC X-RAY 5.8GHz LHCP antenna?

The TrueRC X-RAY 5.8 is an advanced FPV goggle antenna designed for superior video reception. It builds on the X-AIR technology, offering very low side lobes and maximizing main lobe efficiency for clear FPV feeds.

What are the main advantages of the TrueRC X-RAY antenna?

Key advantages include very low side lobes, an excellent front-to-back ratio, and a superior axial ratio for consistent signal quality. It also boasts a wide operating bandwidth and maximizes main lobe efficiency for extended range.

What is the beamwidth of the TrueRC X-RAY antenna?

The antenna has a coverage beamwidth of approximately 60 degrees, with a more focused beamwidth of 24 degrees at -3dB, ensuring a strong signal in the intended direction.

Where can I buy the TrueRC X-RAY 5.8GHz LHCP antenna?

You can buy the TrueRC X-RAY 5.8GHz LHCP antenna at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

Is this antenna compatible with most FPV goggles?

Yes, the TrueRC X-RAY antenna features an SMA connector, which is a standard interface for most FPV goggles and video receivers, ensuring broad compatibility.
