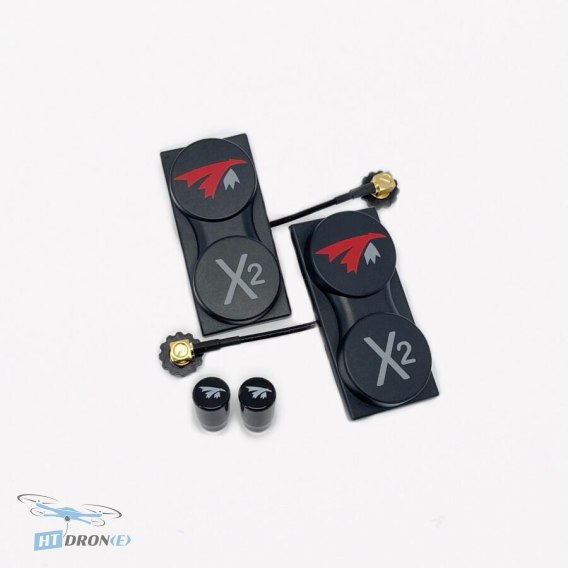

TrueRC X2-AIR 5.8 MK II LHCP FPV Goggle Antenna Pair for DJI FPV

Introduction

Elevate your FPV flights with the TrueRC X2-AIR 5.8 MK II LHCP antenna pair, specifically engineered for DJI FPV goggles. This combo set is designed to deliver unparalleled video reception, even in the most challenging environments, ensuring a stable and clear feed. Experience the difference that high-gain, wide-beam antennas make for your drone racing or freestyle flying.

Key Advantages

• Enhanced 13 dBic gain for extended range and signal clarity.
• Massive combined 180-degree beamwidth for comprehensive coverage.
• Ultra-compact 15mm thin design prevents accidental damage and simplifies storage.
• Direct mount to DJI FPV goggle faceplates with included adhesive foam.
• Custom-designed knurled RP-SMA connectors ensure a secure fit.
• Broad bandwidth operation, performing well even outside the typical 5.8 GHz band.
• Sector beam shape, widest horizontally, providing excellent directional focus.
• LHCP polarization for optimal performance with compatible systems.

Technical Specifications

• X²-air Antenna Specs:
• Bandwidth: 5.1 GHz - 7.0 GHz
• Gain: 13 dBic
• Polarization: LHCP
• Beamwidth Horizontal: 150 degrees
• Beamwidth Vertical: 62 degrees
• Horizontal Beamwidth @-3dB: 75 degrees
• Vertical Beamwidth @-3dB: 34 degrees
• Connector: Custom knurled RP-SMA
• Dimensions: 72 mm x 34 mm x 15 mm
• Weight: 20g each
• Stubby Antenna Specs:
• Gain: 1.9 dBic
• Polarization: LHCP
• Cross-Polarization Rejection: -15 to -30dB (1.9%)
• Bandwidth: 5.6 GHz - 6.0 GHz
• Radiation Efficiency: 99%
• SWR: <=1.5:1</li>
• Weight: 3.7g
• Size: 12.7 mm x 20 mm
• Connector: RP-SMA

Applications

Ideal for FPV drone pilots, including racers, freestylers, and long-range explorers who use DJI FPV goggles. These antennas significantly improve video link stability and range in demanding flight conditions.

Compatibility

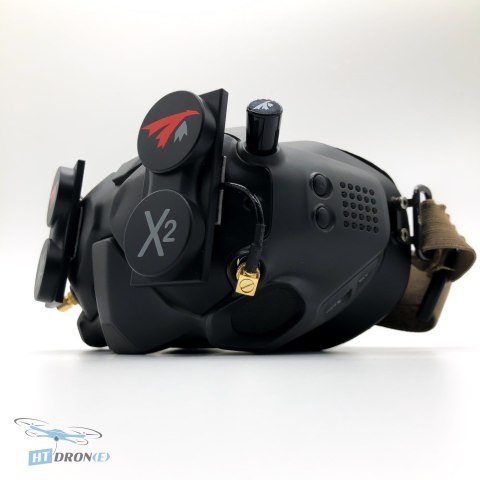

Designed specifically to fit DJI FPV goggles with custom RP-SMA connectors. Includes self-adhesive mounting for direct attachment to the goggle faceplate.

FAQ

What is the main advantage of the TrueRC X2-AIR 5.8 MK II antennas for DJI FPV?

The main advantage is the significantly improved video reception due to a high 13 dBic gain and a combined 180-degree beamwidth, providing a more stable and longer-range video feed for your DJI FPV goggles.

Are these antennas compatible with other FPV goggles besides DJI FPV?

These antennas are specifically designed with custom RP-SMA connectors to perfectly fit the DJI FPV Goggles. While RP-SMA is a common connector, the custom knurling and intended fit are for the DJI system.

How easy is it to install the TrueRC X2-AIR 5.8 MK II antennas?

Installation is very simple. The antennas come with double-sided adhesive foam, allowing you to mount them directly onto the DJI FPV goggle faceplate in just a few minutes.

What makes the design of these antennas beneficial for FPV pilots?

Their ultra-compact, low-profile design, only 15mm thick, makes them less prone to damage during flights or transport. This compact size also ensures they don't interfere with your FPV experience.

Where can I buy the TrueRC X2-AIR 5.8 MK II antennas with reliable delivery?

You can buy the TrueRC X2-AIR 5.8 MK II antennas at HTDRONE. We offer fast and reliable international delivery via DHL, ensuring you receive your order promptly.
