TrueRC X2-AIR 5.8 MK II RHCP SMA FPV Goggle Antenna for Extended Range

Introduction

Upgrade your FPV setup with the TrueRC X2-AIR 5.8 MK II RHCP SMA antenna. This advanced antenna provides a high-gain directional beam, delivering enhanced range and a crisper video signal for an immersive flying experience. It's an ideal choice for drone enthusiasts looking to improve their video link reliability, suitable for both novice pilots and seasoned professionals seeking top-tier performance.

Key advantages

• Enhanced Signal Strength: Improved signal reception for a more stable FPV feed.
• Extended Range: High-gain design pushes the boundaries of your drone's operational distance.
• Clearer Video: Experience sharper, more detailed video transmission thanks to optimized signal clarity.
• RHCP Polarization: Right-Hand Circular Polarization effectively reduces interference from unwanted signals.
• Durable Construction: Built for reliability and longevity in demanding FPV environments.
• Easy Integration: Features an SMA connector for straightforward compatibility with most FPV goggles.
• Optimized Beamwidth: Offers a focused signal pattern for directional pointing and maximum gain.

Technical specifications

• Polarization: RHCP
• Frequency Band: 5.1GHz-7.0GHz
• Gain: 13 dBic

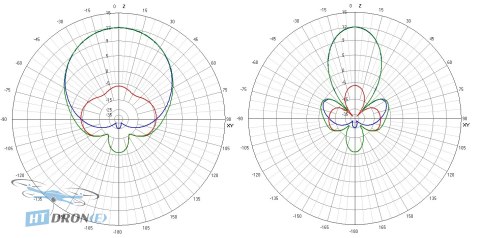

• Horizontal Beamwidth: 150 degrees
• Vertical Beamwidth: 62 degrees
• Horizontal Beamwidth @-3dB: 74 degrees
• Vertical Beamwidth @-3dB: 34 degrees
• Connector: SMA
• Dimensions: 72mm x 34mm x 22mm

*Coverage where reception is at least equivalent to omni.
**Coverage where at least 70% of maximum range is achieved.

Applications

This antenna is perfectly suited for FPV drone racing, freestyle flying, long-range exploration, and professional aerial photography/videography where a robust and clear video link is crucial. Enhance your FPV goggles for any application requiring superior signal reception.

Compatibility

Features an SMA connector, ensuring broad compatibility with a wide range of FPV goggles and video transmitters that support this standard. Please check your existing equipment for SMA connector compatibility.

FAQ

What is the TrueRC X2-AIR 5.8 MK II RHCP SMA antenna used for?

The TrueRC X2-AIR 5.8 MK II RHCP SMA antenna is designed to enhance the video reception for FPV goggles. It provides a high-gain directional signal, offering extended range and clearer video for drone pilots during FPV flights.

What are the main benefits of using RHCP polarization?

RHCP (Right-Hand Circular Polarization) helps to significantly reduce interference from multipath reflections and other sources. This results in a cleaner, more stable video signal, especially in complex environments or at longer distances.

What is the gain and beamwidth of this TrueRC antenna?

This antenna features a gain of 13 dBic. It has a horizontal beamwidth of 150 degrees and a vertical beamwidth of 62 degrees, with a -3dB horizontal coverage of 74 degrees and vertical of 34 degrees, providing a focused directional signal.

Is the TrueRC X2-AIR 5.8 MK II compatible with all FPV goggles?

The antenna uses a standard SMA connector, making it compatible with most FPV goggles that feature an SMA input. Always check your goggle's specifications to ensure compatibility with SMA connectors.

Where can I buy the TrueRC X2-AIR 5.8 MK II RHCP SMA antenna with fast delivery?

You can buy the TrueRC X2-AIR 5.8 MK II RHCP SMA antenna at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best price and deals.
