VIFLY WhoopStor 3 Red 1S LiPo Charger & Discharger for FPV Drones

Introduction

The VIFLY WhoopStor 3 Red is a groundbreaking 1S LiPo battery charger and discharger designed specifically for the FPV drone community. It addresses the common need for proper battery storage and maintenance, offering a comprehensive solution to prolong battery life and ensure optimal performance. Whether you're a racing pilot, a freestyler, or a casual hobbyist, this device provides essential features to keep your 1S batteries in top condition.

Key advantages

• All-in-One Functionality: Serves as both a charger and a discharger, with an intelligent storage mode to automatically bring batteries to the ideal storage voltage (3.80V or 3.85V).

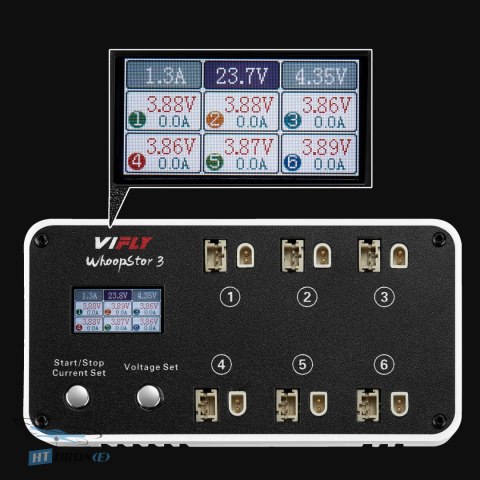

• Vibrant Color LCD Display: Features a high-quality, intuitive color LCD screen that clearly displays charging status and simplifies operation.

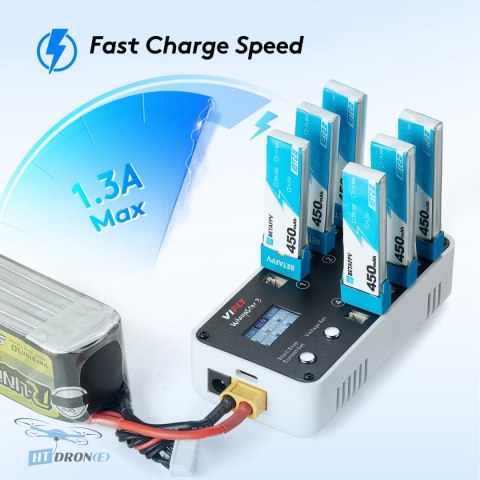

• Fast Charging Capability: Supports adjustable charging currents from 0.3A to 1.3A per port, allowing for optimal charging speeds (up to 2C) based on battery size.
• Six Independent Ports: Equipped with 6 independent charging channels, eliminating the need for batteries to have the same voltage or size, and allowing hot-swapping of batteries.

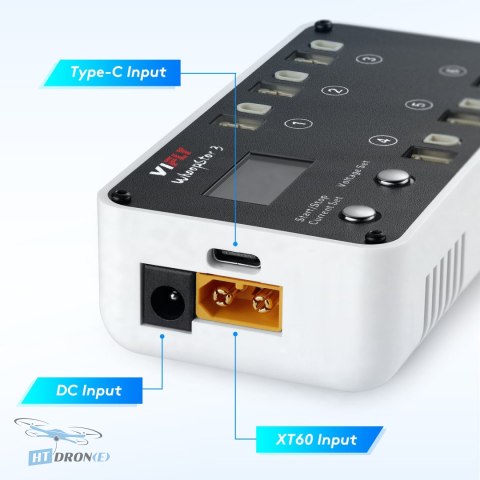

• Versatile Power Inputs: Accepts power via Type-C (supporting PD/QC protocols for fast charging), XT60, and DC (5.5*2.1mm) connectors, offering flexibility in powering the unit.
• Memory Function: Remembers your last settings, saving you time by not needing to reconfigure the charging current after each power cycle.
• Audible Alerts: Includes a buzzer to signal the completion of a charging cycle, which can be manually turned off if preferred.
• Wide Battery Compatibility: Supports standard 1S LiPo (4.20V) and LiHV (4.35V) batteries with PH2.0 and BT2.0 connectors.

Technical specifications

• Dimensions: 108x55x30mm
• Weight: 140g
• Input Connectors: XT60, DC (5.5*2.1mm), USB-C (PD3.0)
• Input Voltage Range: 6V-26V (XT60/DC), 9V-20V (USB-C)
• Minimum Input Power: 40W
• Max Charging Current: 1.3A per port
• Supported Battery Connectors: PH2.0 and BT2.0
• Battery Type: LiPO 4.20V (±0.05V) / LiHV 4.35V (±0.05V)

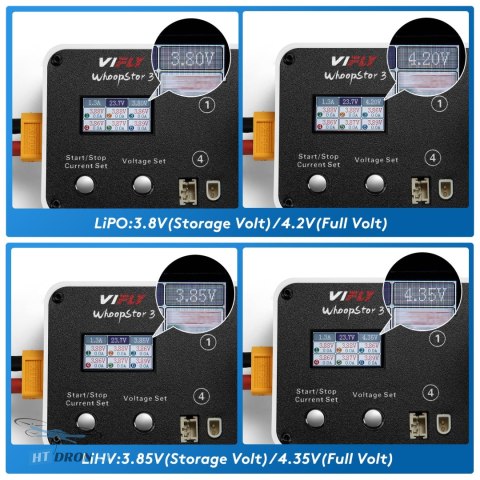

• Storage Voltage: 3.80V (±0.05V) / 3.85V (±0.05V)
• Max Discharge Power: 1.1W per port
• Color: Red

Applications

The VIFLY WhoopStor 3 Red is ideal for FPV drone pilots, particularly those using 1S batteries for micro drones, whoop drones, and tiny whoops. It's perfect for maintaining battery health during storage, ensuring batteries are ready for flight, and managing multiple batteries efficiently. Applications include FPV racing, freestyle flying, drone inspections with micro drones, and general FPV hobby use.

Compatibility

Power Input: Compatible with 6V-26V input via XT60 or DC (5.5*2.1mm) connectors, and 9V-20V via USB-C with PD3.0 protocol. Minimum input power required is 40W.
Battery Connectors: Supports both PH2.0 and BT2.0 connectors for 1S LiPo and LiHV batteries.

FAQ

What is the VIFLY WhoopStor 3 Red and who is it for?

The VIFLY WhoopStor 3 Red is an advanced 1S LiPo charger and discharger designed for FPV drone pilots. It's ideal for anyone using 1S batteries for micro drones, whoops, and tiny whoops, helping to maintain battery health and performance.

What are the main features of the VIFLY WhoopStor 3 Red?

Key features include 6 independent charging ports, a color LCD display, automatic storage voltage function, fast charging up to 1.3A per port, and multiple power input options (Type-C PD/QC, XT60, DC). It also includes a memory function and audible completion alerts.

How does the storage function work on the VIFLY WhoopStor 3 Red?

The storage function automatically charges or discharges your 1S LiPo or LiHV batteries to the optimal storage voltage of 3.80V or 3.85V. This is crucial for long-term battery health and preventing degradation.

What types of batteries and connectors does the VIFLY WhoopStor 3 Red support?

It supports 1S LiPo (4.20V) and LiHV (4.35V) batteries. It is compatible with both PH2.0 and BT2.0 battery connectors, offering versatility for different FPV batteries.

Where can I buy the VIFLY WhoopStor 3 Red and what are the delivery options?

You can buy the VIFLY WhoopStor 3 Red directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL for international orders. Check our store for the best deals on FPV equipment.
