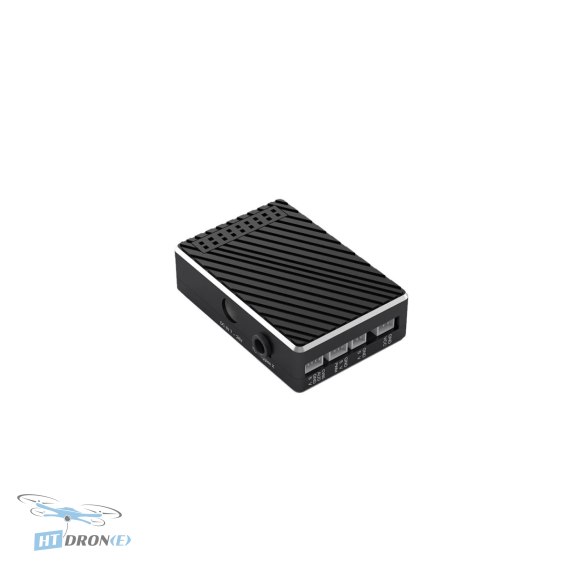

Walksnail Extension Board for Avatar Goggles X with Head Tracking and Analog Input

Introduction

The Walksnail Extension Board is a crucial accessory designed to significantly enhance the functionality of your Walksnail Avatar Goggles X. This module is specifically targeted at users whose Goggles X models do not feature integrated head tracking, providing a straightforward solution to add this immersive capability. It also resolves compatibility issues with certain analog FPV receivers, making it a versatile upgrade for a wider range of FPV setups. Elevate your FPV experience with this essential expansion module from HTDRONE.

Key advantages

• Adds integrated head tracking functionality to compatible Walksnail Avatar Goggles X.
• Improves compatibility with specific analog FPV video receivers for broader system integration.
• Enables advanced head tracking when used with Avatar Moonlight VTX and GM Gimbal systems.
• Facilitates analog video signal input for enhanced flexibility in FPV setups.
• Offers a straightforward installation process with clear connection guidelines.
• Provides a cost-effective way to upgrade existing Goggles X without purchasing a new headset.
• Essential for users seeking a more immersive FPV flying experience and advanced control.

Technical specifications

• Product Name: Walksnail Extension Board
• Compatibility: Walksnail Avatar Goggles X (models without built-in head tracking)
• Features: Integrated Head Tracking, Analog Receiver Compatibility, Analog Video Input Mode
• Analog Signal Input: Activated by holding 'Return' button for 5 seconds.
• Head Tracking with Moonlight VTX/GM Gimbal: Requires Goggles X and Moonlight VTX firmware v38.43.4 or higher. Select PTZ mode in Goggles menu.
• Package Contents: 1 x Walksnail Extension Board for Goggles

Applications

This extension board is ideal for FPV pilots who want to add head tracking functionality to their Walksnail Avatar Goggles X for a more immersive flight experience. It's also perfect for those integrating analog FPV systems or wishing to leverage the advanced control offered by the Avatar Moonlight VTX and GM Gimbal. It caters to both freestyle and potentially cinematic FPV pilots looking to enhance their control and situational awareness.

Compatibility

This module is exclusively compatible with Walksnail Avatar Goggles X models that do not have built-in head tracking. It enhances compatibility with certain analog FPV receivers. For head tracking with Moonlight VTX and GM Gimbal, firmware version 38.43.4 or higher is required for both the Goggles X and Moonlight VTX. Specific cable connections are detailed in the installation instructions, including 5-pin and 4-pin connectors for the goggles and module respectively.

FAQ

What is the Walksnail Extension Board for Goggles X?

The Walksnail Extension Board is an accessory designed to add head tracking functionality and improve analog receiver compatibility to Walksnail Avatar Goggles X models that do not have these features built-in. It allows for a more immersive FPV experience.

How do I install the Walksnail Extension Board?

Installation involves connecting the shorter power cable to the goggles, the longer cable to the extension module, and the 5-pin and 4-pin connectors to their respective devices. Ensure the white connector is facing forward during installation. Pins for analog receivers can connect to any available pin row on the module.

Can I use head tracking with analog FPV systems using this board?

Yes, the board adds head tracking functionality and also allows for analog video signal input. You can activate analog input mode by holding the 'Return' button for 5 seconds. This board is essential for integrating analog FPV with advanced control.

What firmware is needed for head tracking with Moonlight VTX and GM Gimbal?

To enable head tracking with the Avatar Moonlight VTX and GM Gimbal, ensure your Goggles X and Moonlight VTX firmware are updated to version 38.43.4 or higher. Then, select PTZ mode in the Goggles menu.

Where can I buy the Walksnail Extension Board with reliable delivery?

You can buy the Walksnail Extension Board at HTDRONE, your specialized FPV drone parts store based in Poland. We offer fast and reliable international shipping via DHL, ensuring you receive your order promptly.
